HDAF207 (1x - 150x)

Check out our videos

on HDAF207:

HDAF207 is the ultimate digital microscope with 12" or 24” HD monitor paired with the most advanced high definition digital camera technology to deliver Full HD 1080p resolution motion video with no lag time. The HD digital microscope offers magnification of 2x to 75x on 24" HD monitor with long working distance of 5.3" to 16" which is ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation.  Optional rear 2x lens can be used to increase the magnification up to 150x with same working distance.  The digital microscope has HDMI output and SD card for direct image and motion video capture. Still images can be saved in 1920x1080 (2 mega-pixels) and motion HD video can be captured in 1080p.  No computer is needed for image or video capture to SD card.  USB output is available for direct connection to computer for video measurement application. Customized camera built-in measurement software is also available.



The HDAF207 can be configured with various stands, XY measurement stage, and lighting accessories. Adjustable high intensity LEDs provide bright uniform lighting for great picture quality. Diffuser glass filter can be used to reduce glare from highly reflective parts. Polarizer lighting and dual arm goose arm lighting options are also available for this HDAF207. The optional laser light pointer is great for locating the inspection area. Measurement software and XY measurement stages are also available with the HDAF207

HDAF207 Benefits

· High Definition HD 1080p digital microscope
· Healthy Ergonomics: Less eye fatigue and neck stress
· Great Depth of Field
· Long Working Distance: 5.3" to 16"
· Adjustable Viewing Angles (0 to 90 degrees)
· Real Time Full Motion HD1080p 60fps
· Large HD monitor for discussion or training purposes
· Save images with 2 megapixel resolution direct to SD card
· HD 1080p motion video can be recorded direct to SD card

· No computer needed for SD card
· Wide zoom ratio with constant focus
· Full camera, lens and lighting adjustments
· XY measurement stage options available
· Many stand options
· Adjustable high intensity LEDs with diffuser glass
· Laser Pointer Option
· Fluorescent or halogen lighting options
· Measurement software and stage option

HDAF207 Applications

· Assembly
· Production
· Quality Control
· Failure Analysis
· Electronics
· Documentation

· Video Recording
· Medical Device
· Machining
· Aerospace
· Natural Science
· Training

· Education

· Research and Development

· Forensics

· Pharmaceuticals

· Micro Electronics

· SMT

· Semiconductor

Wi-Fi Video Streaming
Systems can also be configured with Manual Focus camera

LED Ring Light with diffuser glass (removable) for minimizing glares

Optional Laser Pointer for larger

PCB application

HDAF207 User Interface

Settings can easily be controlled by mouse

HDAF207 allows you to generate up to 4 crosslines vertically and horizontally

HDAF207 Camera Control Settngs

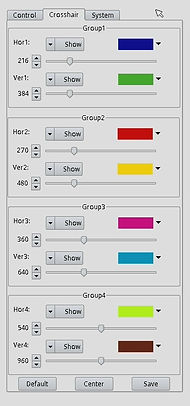

HDAF207 Crosshair Generation Settigs
HDAF207 Crosshair Generation

HDAF207 Viewing Charts

HDAF207h Viewing Chart (with rear 2x added)
