HD80W (1x - 16x)

Starting at $2,000

HD80W is the ultimate digital microscope with 12" or 24” HD monitor paired with the most advanced high definition digital camera technology to deliver Full HD 1080p resolution motion video with no lag time. The HD digital microscope offers magnification of 2x-16x on 24" HD monitor or
1x-8x on 12" HD monitor with long working distance of 3.3”-25.5”, which is ideal for assembly, inspection, training, real-time viewing, image capture and motion video documentation.  Optional rear 2x lens can be used to increase the magnification up to 32x with same working distance.  The digital microscope has HDMI output and SD card for direct image and motion video capture. Still images can be saved in 3264x1836 (6 mega-pixels) and motion HD video can be captured in 1080p.  No computer is needed for image or video capture to SD card.  USB output is available for direct connection to computer for video measurement application. Customized camera built-in measurement software is also available.



The HD80W can be configured with various stands, XY measurement stage, and lighting accessories. Adjustable high intensity LEDs provide bright uniform lighting for great picture quality. Diffuser glass filter can be used to reduce glare from highly reflective parts. Polarizer lighting and dual arm goose arm lighting options are also available for this HD80W. The optional laser light pointer is great for locating the inspection area. Measurement software and XY measurement stages are also available with the HD80W.

HD80W Benefits

· High Definition HD 1080p digital microscope
· Healthy Ergonomics: Less eye fatigue and neck stress
· Great Depth of Field
· Long Working Distance: 3.3" to 25.5"
· Adjustable Viewing Angles (0 to 90 degrees)
· Real Time Full Motion HD1080p 60fps
· Large HD monitor for discussion or training purposes
· Save images with 6 megapixel resolution direct to SD card
· HD 1080p motion video can be recorded direct to SD card

· No computer needed for SD card
· Wide zoom ratio with constant focus
· Full camera, lens and lighting adjustments
· XY measurement stage options available
· Many stand options
· Adjustable high intensity LEDs with diffuser glass
· Laser Pointer Option
· Fluorescent or halogen lighting options
· Measurement software and stage option

HD80W Applications

· Assembly
· Production
· Quality Control
· Failure Analysis
· Electronics
· Documentation

· Video Recording
· Medical Device
· Machining
· Aerospace
· Natural Science
· Training

· Education

· Research and Development

· Forensics

· Pharmaceuticals

· Micro Electronics

· SMT

· Semiconductor

LED Ring Light with diffuser glass (removable) for minimizing glares

Optional Laser Pointer for larger

PCB application

NEW m-Series with Intelligent Integrated Measurement Tools
(no PC required)

Smart Measurement Tools built inside the Camera (allow up to 10 calibrations)

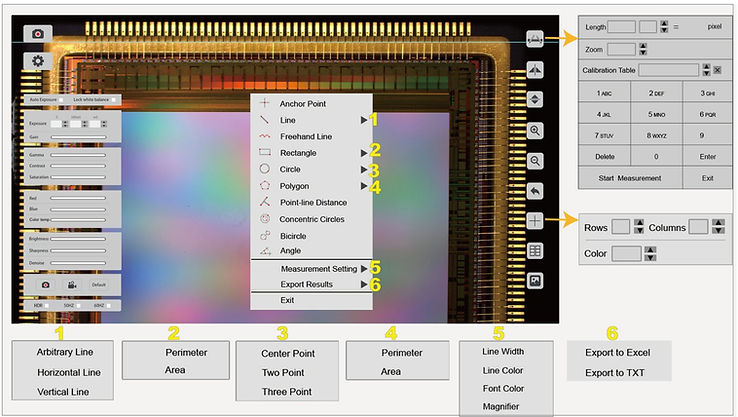

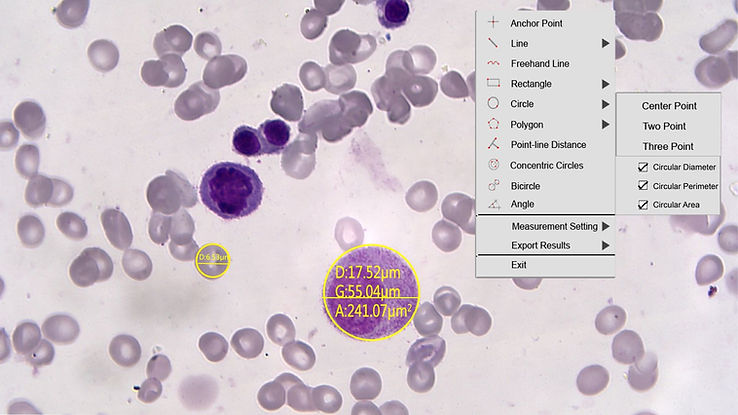

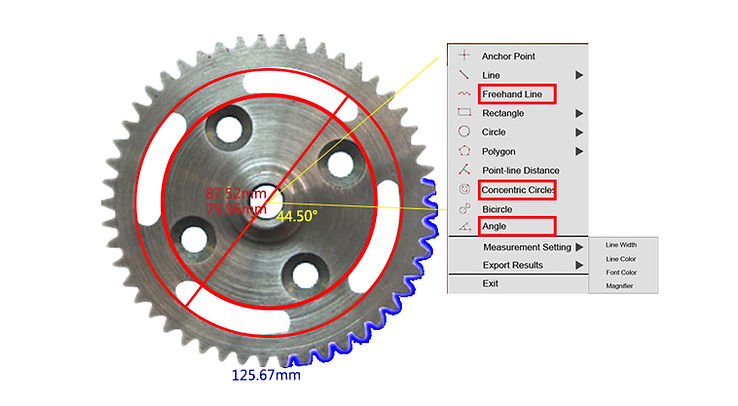

The m-Series provides extremely powerful measurement functionality including: freehand lines, rectangles, polygons, circles, bicircles, angles, point-line distance and much more. In addition to the ability to measure point-line distance, angles, the length of curves and lines,
the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make the measurements more convenient and simple.

Camera settings and measurement tools easily controlled by mouse
Micron Level Measurement Accuracy

The m-Series is capable of delivering measurements with ultra high resolution which provides an incredible metrology capability in the most demanding situations.

Measurement for Various Applications

m-Series allows calibrations in mm, µm, inch and mil, which will meet various measurement requirements in different applications. And these results provide objective and reliable data to support quantitative analysis.

Camera Control & Measurement Settings (click to enlarge)

Systems can also be configured with Auto Focus camera

Magnification/Field of View/Working Distance Chart

Image/Video Gallery (click to enlarge)
1/1

Other Microscopes and Accessories Options

 Accessories (click to enlarge)

Back Lighting
XY Measurement
XY Measurement
1 Micron
Z-Height Measurement
Mitutoyo Digimatic Meter
XY Measurement
Mitutoyo Micrometer
Knob Control
XY Stage
Measurement
Software
Riser Stage
Up Down
XY Stage
Knob Controls
XY Stage
Floor Stand
Articulating Arm
Stand
Dual Gliding Stand
LED Back Lighting
Stand
Rotating Table
Oblique viewing
XY Sliding Stage
15"x15"
Polarizer Lighting
Filter
Foot Controls
for HDAF series
LED Back Lighting
Multi Viewer
DIC Module
Differential Interference Contrast
Right Angle
Body Tube
HD801 and M12 with improved ergonomic viewing angle
3D Mirror for 35
degree angle viewing
BGA mirrors for 90
degree angle viewing
Laser Pointer
for larger PCB inspection
Show More
Video Measurement Software
Image Stitching and Extended Depth of Focus Software
